Thank you for purchasing the PitPet Automatic Pet Feeder. This device ensures your pet is fed on time, even when you’re away. This manual will guide you through the setup, operation, and maintenance of your new feeder.
PitPet Automatic Pet Feeder Manual Detailed Instruction in PDF
PitPet Automatic Pet Feeder Manual Step-by-Step Instruction
1. Safety Instructions
- Read all instructions carefully before using the feeder.
- Keep the feeder out of reach of children.
- Do not immerse the feeder in water or any other liquid.
- Use only the recommended power adapter.
- Do not use the feeder if the power cord is damaged.
- Unplug the feeder before cleaning.

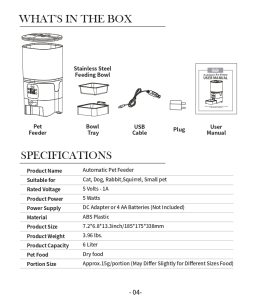

2. Components
- Main Feeder Unit
- Food Storage Container
- Feeding Tray
- Power Adapter
- User Manual
3. Assembly Instructions
- Unpack all components and ensure everything is included.

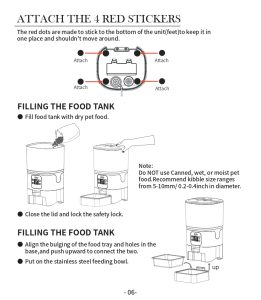

- Attach the food storage container to the top of the main feeder unit. Twist clockwise until it locks into place.
- Place the feeding tray at the bottom of the feeder unit.
- Plug in the power adapter into the back of the feeder and then into a power outlet.
4. Setting Up the Feeder
- Power on the feeder by pressing the power button.
- Set the current time:
- Press and hold the “Clock” button until the hour digits flash.
- Use the “+” and “-” buttons to set the correct hour.
- Press “Clock” again to set the minutes using the same method.
- Select the portion size using the portion size button (refer to the portion size chart in the manual for guidance).
5. Programming Feeding Times
- Press the “Meal” button to select the meal you want to program (Meal 1, Meal 2, etc.).
- Set the feeding time:
- Press and hold the “Clock” button until the hour digits flash.
- Use the “+” and “-” buttons to set the feeding hour.
- Press “Clock” again to set the minutes using the same method.
- Set the portion size for this meal by pressing the portion size button.
- Repeat steps 1-3 for additional meals if needed.
6. Cleaning and Maintenance
- Unplug the feeder before cleaning.
- Remove the food storage container and feeding tray.
- Wash the container and tray with warm, soapy water. Rinse and dry thoroughly.
- Wipe the main feeder unit with a damp cloth. Do not submerge it in water.
7. Troubleshooting
- Feeder not dispensing food: Ensure it is properly plugged in and that there is food in the container. Check that the feeding times are correctly programmed.
- Display not working: Make sure the feeder is plugged into a working outlet. If it still doesn’t work, contact customer support.
- Food jam: Clean the dispenser and ensure food is not blocking the dispensing mechanism.
